Perforated Rubber / Plastic
Think Perforatation – Think Graepels
What is perforated rubber and where is it used?
Perforated rubber is a versatile and high-performance material that is used for processing industries. such as quarrying and recycling. ubber mats and screens are used for static and mobile plants during demolition screening.
Rubber is also used for screening in the Agricultural and Food Processing industries, for example in screening mats for potatoes. Graepels perforate for a range of sectors.
Download pdf
Graepels high performing, quality Perforated Rubber is available in 3 main material types:
- Polyurethane & Vulkolan: Also referred to as Spaleck, Bivtec and Binder which are the brand names for this material are perforated by Graepels to suit all makes of machinery.
- EPDM: SAR Grade Rubber with a shore hardness of 65 to avoid abrasion -widely used for the mineral processing industry. Specifically designed to display excellent resistance to impact abrasion to DIN22102. Our rubber screens are reinforced with a special heat-treated polyester cord which is resistant to deformation during operation, enabling tension while in service without the need for adjustment. Rubber screen cloth has superior noise reduction qualities over metal screens, providing a better/safer working environment for your personnel.
- Alternative shore hardnesses are available to suit your requirements.
Our Machinery offers an impressive cutting force of 40 tons and cutting strokes of 110mm. For alternative material enquiries please contact our team directly.

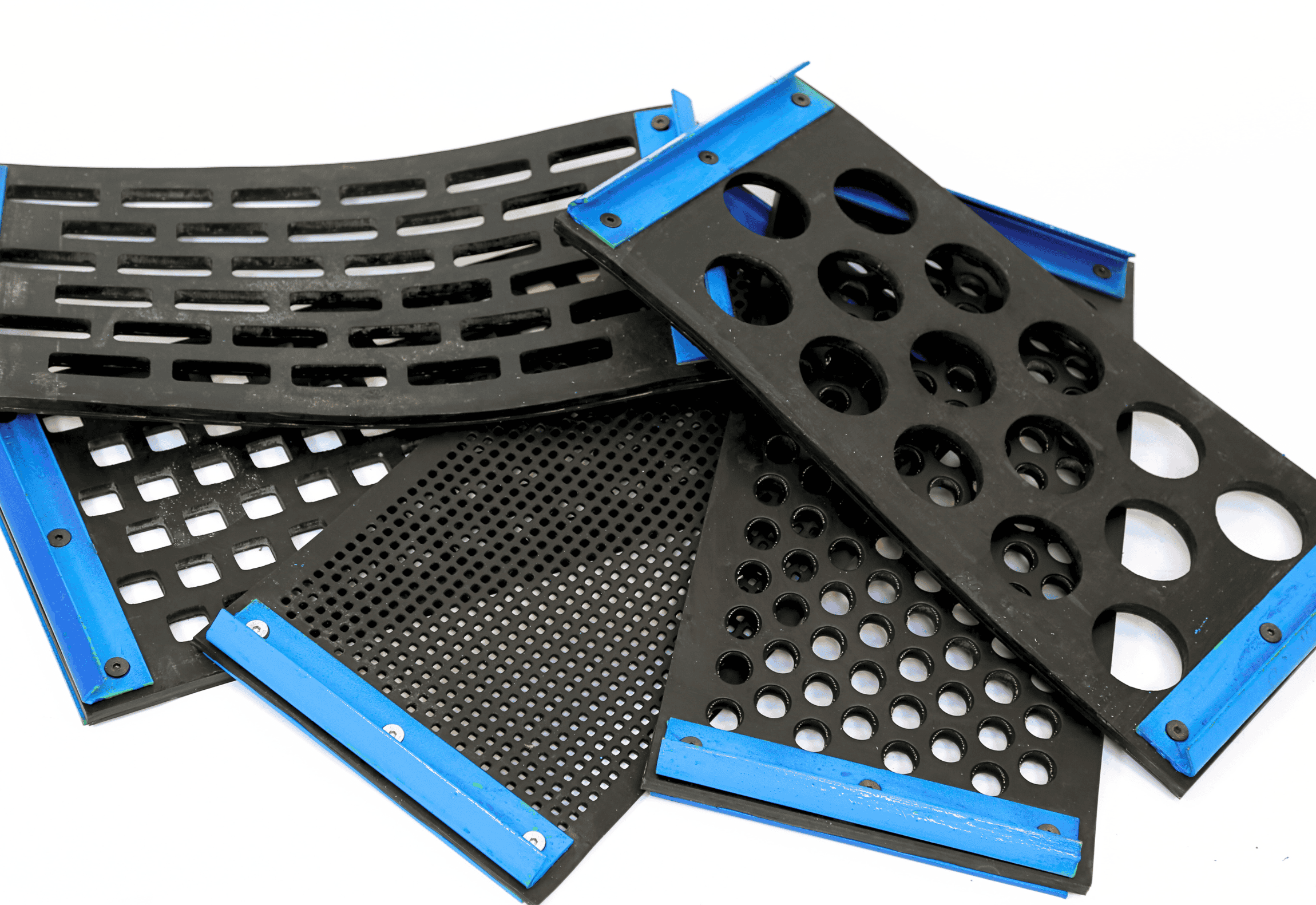

EDPM Rubber Mats

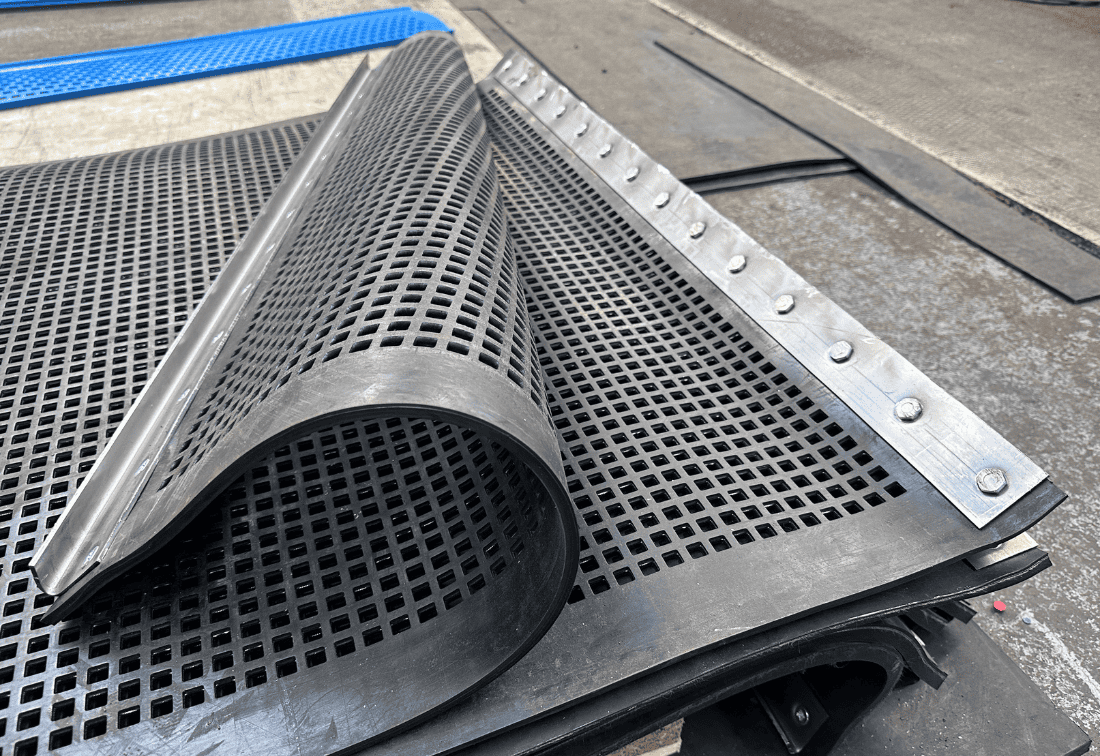

EDPM Mats Hooking

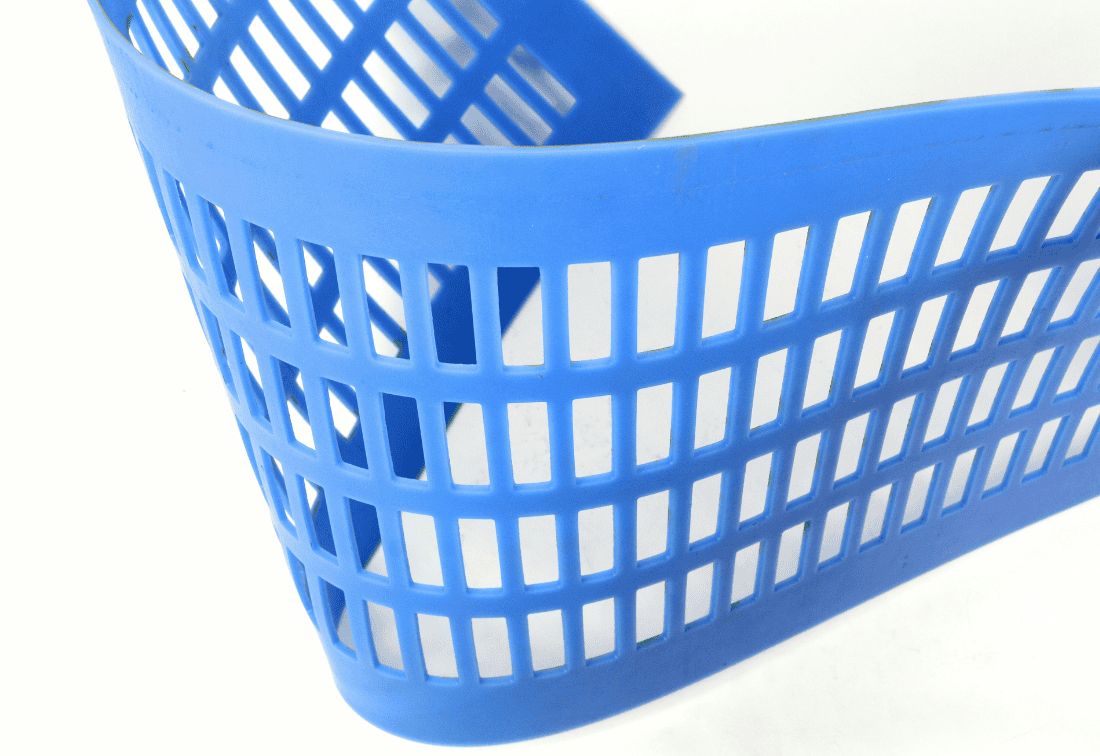

Polyurethane Screens
Please Note: Graepels offer expert advice on all considerations listed to ensure optimal results and the highest quality output for your application.
- Rubber Types & Grades: We can recommend the best rubber type for your application
- Metal Thickness: Graepels have the capabilities to perforate rubber in a wide range of variations. We work with you to access the desired specifications needed for screening your media, open our PDF above for our full list of capabilities
- Perforation Size, Shape and Type: With a vast range of tooling, all standards including round, square and slotted holes are available.
- Pattern & Pitch: all degrees of perforation possible
- Sheet Size: Graepels manufacture screening mats for all the major machine types and custom make screening media to meet customer requirements.
- Margins (unperforated/blank areas): Margins (unperforated areas) can be left on sheets.
- Fabrication: General fabrication is offered for all our products for customers who do not fabricate themselves, for rubber we offer cutting and hooking. For polurethane screens can be supplied flat or with edges.
Technical Details
Graepels advanced machinery offers an impressive cutting force of 40 tons, and cutting strokes of 110mm, Available in standard screen sizes, custom made on request. The maximum material thickness 50mm.
- Perforation Size: from 4mm up to 125mm Perforations depending on rubber type.
- Rubber Types & Grades: Polyurethane, Vulkolan and EPDM
- Sheet Thickness: 3mm thick up to 35mm thick however, Graepels have the capabilities to perforate 50mm thick rubber.
- Sheet Sizes: Custom sizes are available. The maximum sheet size for EPDM is 4m x 2m. For Polyurethane and Vulkolan 4 meters x 470mm is currently the largest.
- % Open Area: A wide of % open areas are possible most popular tend to be between 35% to 45%
Flip flow, Polyurethane Screens tend to be lighter, thinner and more flexible than Rubber Screens and can be successfully punched in different hole shapes with smaller apertures. Polyurethane screens work best where plugging is an issue.
Advantages of Flip Flow Screens
- Screens are noise reducing, creating an improved working environment for personnel
- Aperture size of 4mm to approx 50mm
- Compact and well designed construction
- Wear resistant -They do not suffer from pitting or stress corrosion, particularly in the presence of seawater
- Screens can be manufactured by Graepels to suit almost all makes of machinery within the quarrying, waste management and recycling industries
- Low operating and maintenance costs
Graepels Rubber screens can be adapted to suit almost all makes of machinery. Rubber screens offer many advantages including longer life span and reduced noise levels. They are particularly suited to the upper part of screen decks, or on a complete deck, where required.
Advantages of EDPM Rubber Screens
- Screens are noise reducing, creating an improved working environment for personnel
- Rubber screens are manufactured in natural SAR Grade rubber with a shore hardness of 65, which offers excellent resistance to impact abrasion
- Screens can be manufactured by Graepels to suit almost all makes of machinery within the quarrying, waste management and recycling industries
- They do not suffer from pitting or stress corrosion, particularly in the presence of sea water.
For a list of common applications visit the application section of the website. For more information on using rubber in your industry or for a specific application contact a member of the Graepels team who can advise.
| Process |
| Food Processing |
| Pharmaceuticals |
| Quarrying & Mining |
| Waste management & Recycling |
- Durable, long lasting compared to wire depending on the material being screened
- Light (depending on material and thickness this can change) lighter panels and components are easier to work with/handle and reduce transportation fuel and costs.
- Reduce noise level for screening
- Noncorrosive in wet conditions
- Cost effective
- Punch rapidly – available stock or to suit specific customer specification
- Polyurethane screens, also known as flip flow mats, tend to be lighter, thinner, and more flexible the rubber screens. These work well where plugging is an issue.
