Why Choose Graepels Products for Enclosures?
In architecture and construction, enclosures refer to the exterior walls, roofs, and other structural elements that encase a building’s interior spaces, providing protection from the external environment. However, enclosures can also refer to bike enclosures, electrical enclosures, server and network enclosures, bin enclosures and more.
Choosing Graepels for your enclosures infill guarantees superior quality and durability. We collaborate closely with you to produce cabinets and enclosures that require minimal framing and fabrication. For instance, techniques like folding can effectively eliminate the necessity for welding, streamlining the manufacturing process.

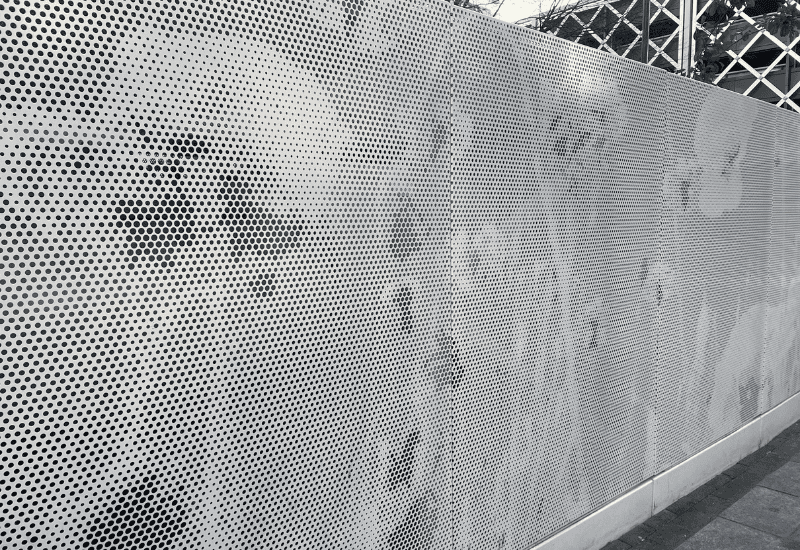

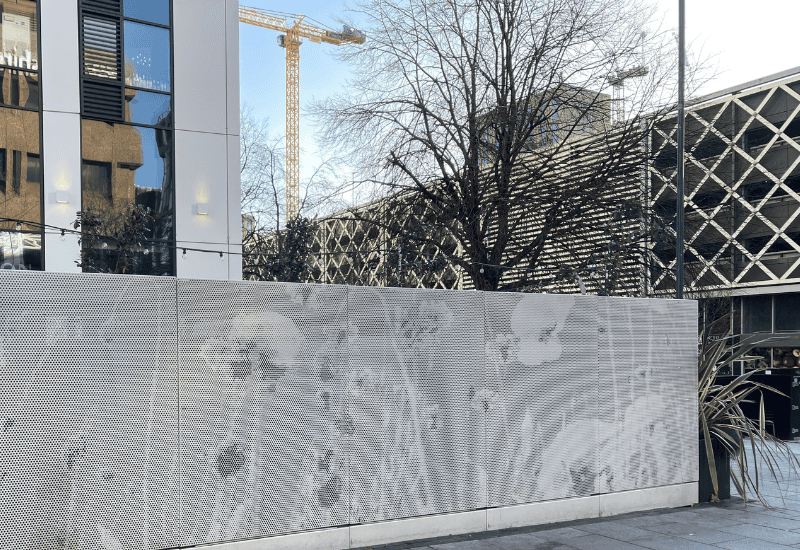

Picture Perf Enclosure

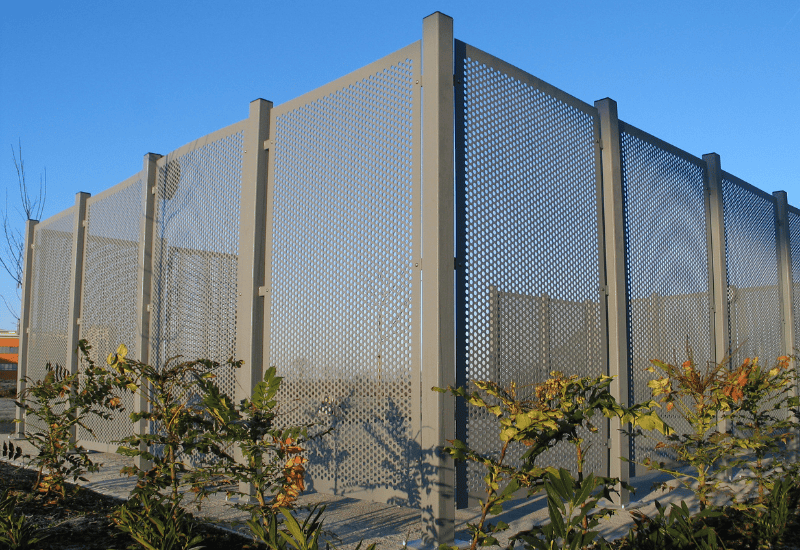

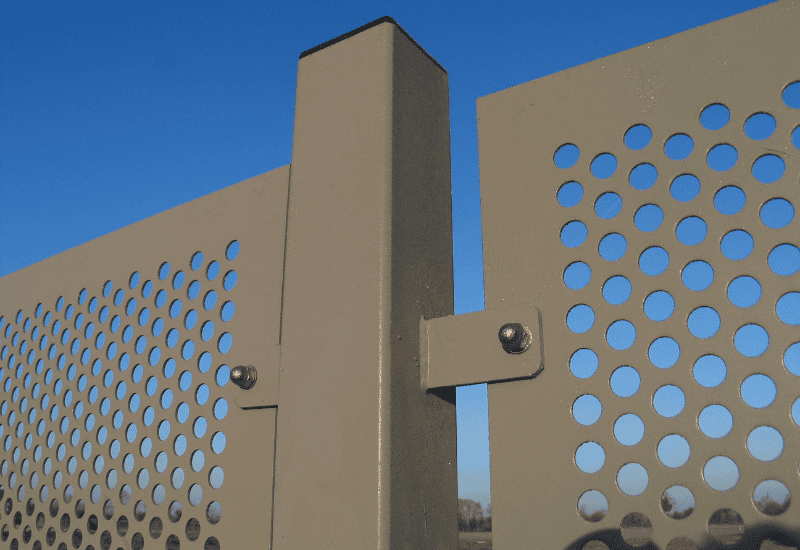

Perforated Enclosure

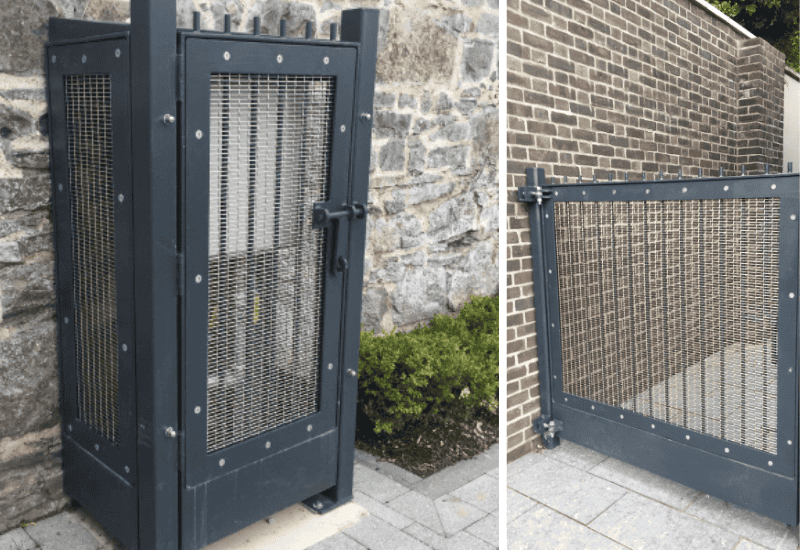

Woven Wire Enclosure

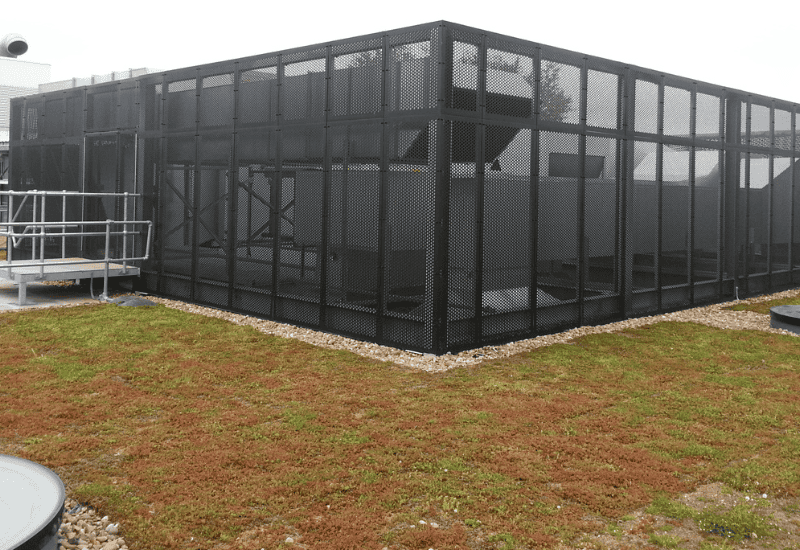

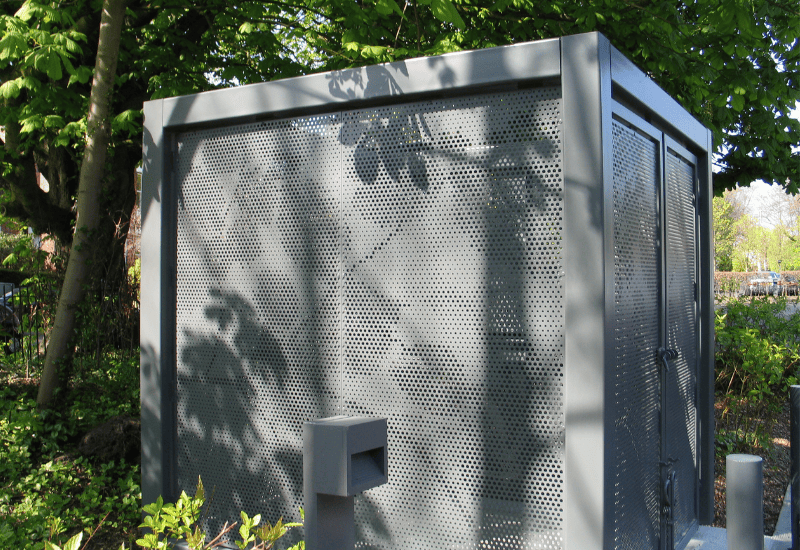

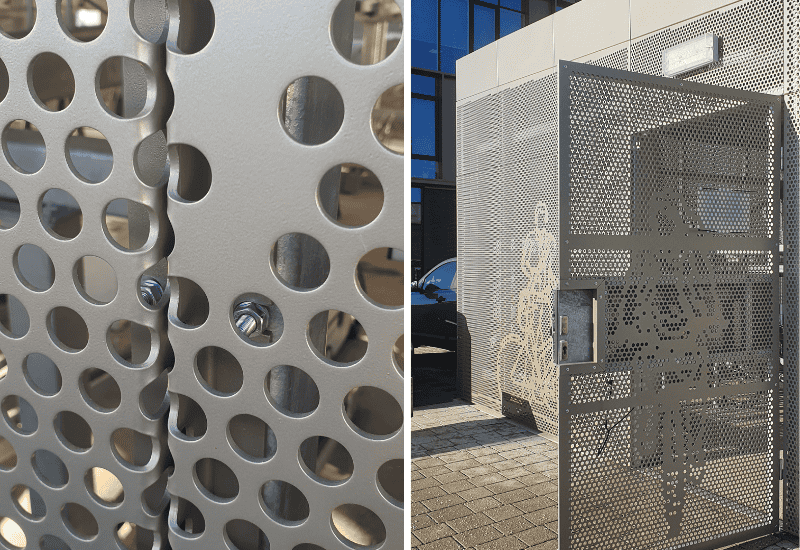

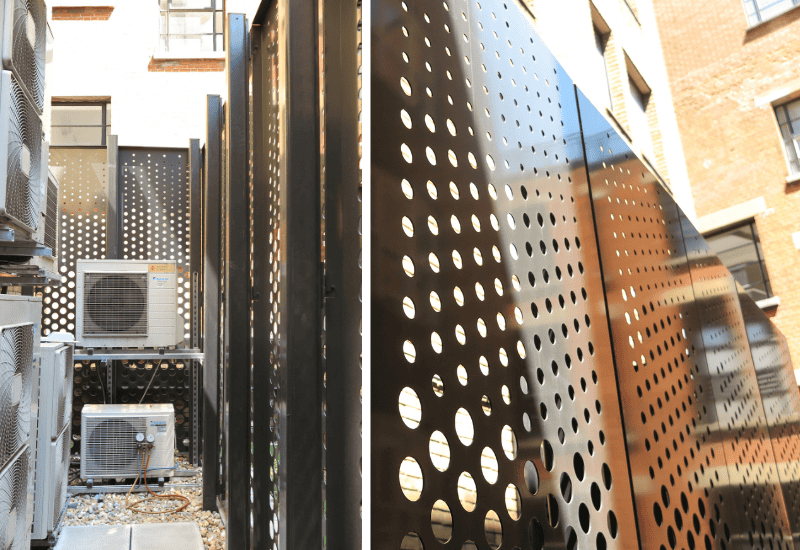

Perforated Metal Enclosures: offer a multifaceted solution for diverse applications, blending
functionality with aesthetics. Use Picture perf, stand Perf or Decorative Perf to make an enclosure or cabinets, enclosures can be a feature rather than an eyesore without sacrificing the functional elements. Key features of perforated enclosures include excellent ventilation, light control, privacy, and durability. Ensuring security and access control.

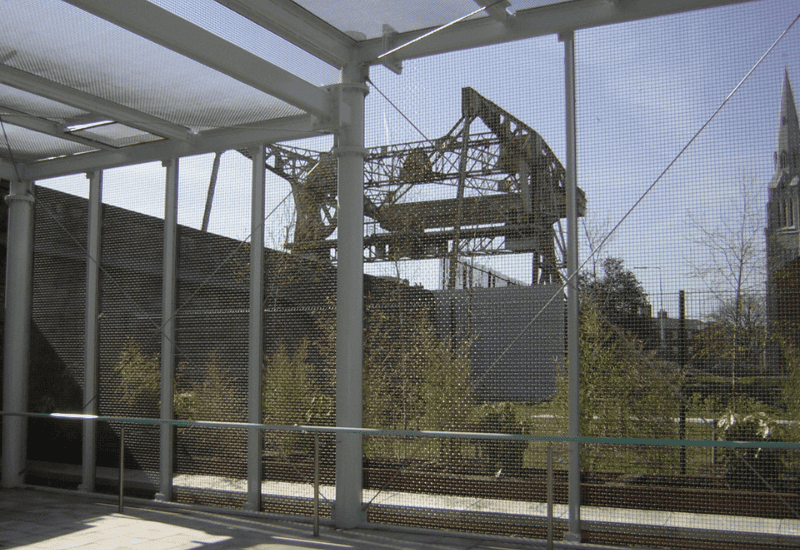

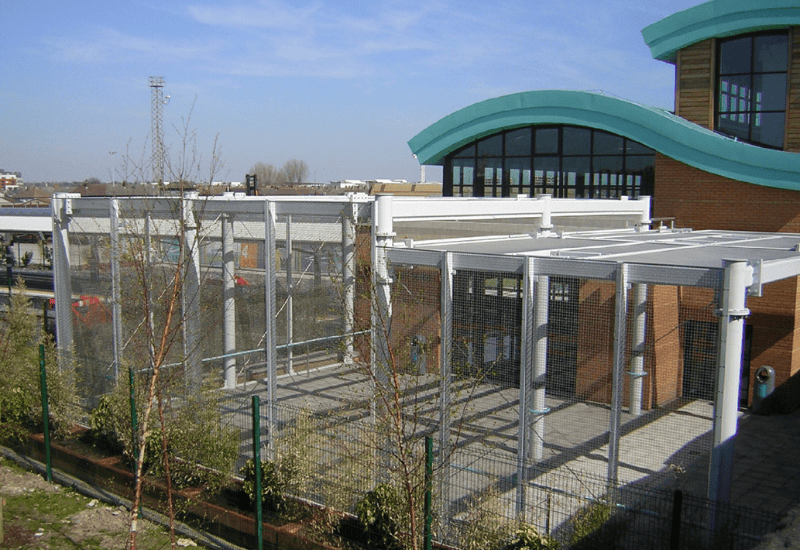

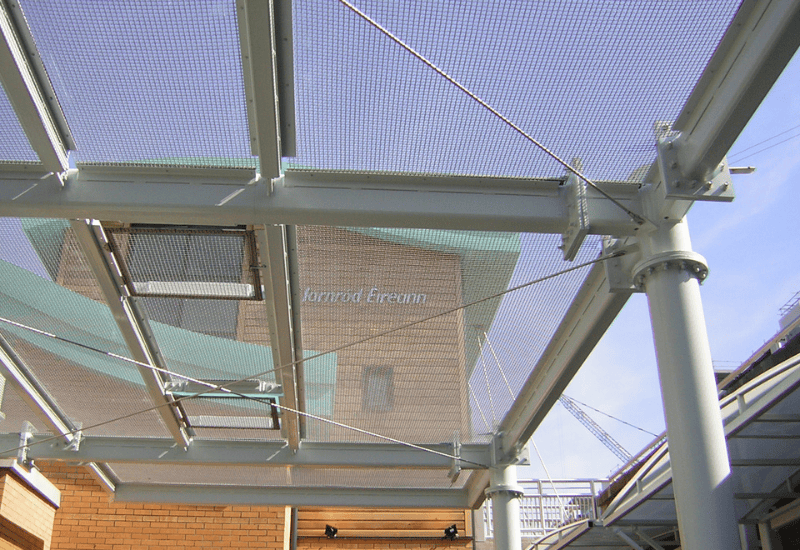

Woven Wire Mesh Enclosures: Woven wire mesh is extremely versatile product and works well for the application of enclosures much like perforated metal it seamlessly blends functionality and aesthetics across many different applications from architectural, security, storage, animal containment to electrical enclosures and communication and networking equipment for example in Data centers.
Laser Cutting Enclosures: Overall, laser cutting technology plays a crucial role in the manufacturing of enclosures and cabinets, when combined with perforated metal we can produce excellent solutions and provide precise, customisable, and efficient manufacturing solutions. Ensuring high-quality enclosed components, flat pack enclosures or custom complex designs as per your specifications.
Metal enclosures are protective containers or housing units made from various types of metal, such as steel, aluminum, or stainless steel, designed to safeguard and enclose valuable or sensitive equipment, components, or systems. These enclosures come in a variety of sizes and configurations, each tailored to specific industrial, commercial, or residential applications. They serve as protective barriers against environmental factors, physical damage, and unauthorized access while ensuring the reliable operation of the enclosed equipment.
Perforated Metal: Link to Perforated Metal Page
- Perforation size: 1mm-154mm (additional Perforation sizes are available on request)
- Material specifications; Mild Steel, Aluminum, Stainless Steel, Galvanized Steel, Corten, Brass, Copper, Zinc, Titanium, Certain plastics by special request
- Sheet Thickness: Popular thickness: 0.75mm – 12mm. Graepels can perforate up to 25mm thick on special request/order.
- Sheet size: Standard sizes include 2mx1m, 2.5mx1.25m and 3mx1.5m. Sheets 4mx2m are perforated on our larger machines. Longer lengths up to 6m perforated by special request.
- Percentage open area: All open areas are physically possible but standard tooling tends to be between 20% and 60%
Woven Wire Mesh: Link to Woven Wire Mesh Page
- Materials: High Tensile Steel, Stainless Steel, Galvanised Steel, Mild Steel (special order), and other materials by special request
- Mesh Aperture Range: 2mm – 150mm
- Woven Mesh Thickness: 2mm – 12mmSheet Thickness: Determined by wire mesh dia.
- Sheet Size: Panel sizes are a maximum of 6m long 2.44m wide, falling within the standard
range. - Percentage Open Area: 50% – 75% with other specifications manufactured to order.
- Patterns: A variety of patterns are available in our Woven Mesh products, please see our ‘Product Pattern Gallery’ on our woven wire mesh page.
Laser Cutting:
- Material specifications; Stainless Steel, Mild Steel and Aluminum
- Material Thickness Range: Enquiry specific – As a general rule we can comfortably cut up to half the maximum material thickness range which would be 12mm mild steel, 8mm Stainless Steel and 4mm Aluminium.
- Sheet size; – Up to 3000 x 1500mm
- Size and Shape; There are no limits to shapes and sizes of openings.
Patterns:
CAD Design: Graepels can work with your drawings to ensure accuracy and precision thus we manufacture to customers specifications.Post Processing: Depending on the material and application, laser- cut components may require additional processing such as surface finishing, welding, or assembly.
Electronic Enclosures: Perforated, laser cut, and woven enclosures are used to provide protection for electronic devices and equipment from electromagnetic interference (EMI), static, and physical damage. They are used in industries such as telecommunications, aerospace, and healthcare for housing sensitive electronic components like servers, routers, and medical devices.
Transportation Enclosures: Perforated Metal, Woven Mesh and laser can all be used to protect equipment and cargo during transportation, including cases for sensitive instruments, protective covers for machinery, and containers for shipping hazardous materials.

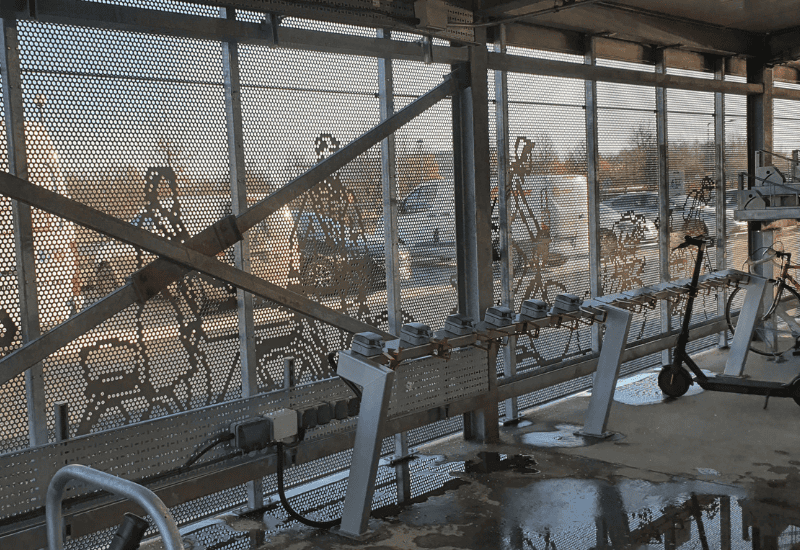

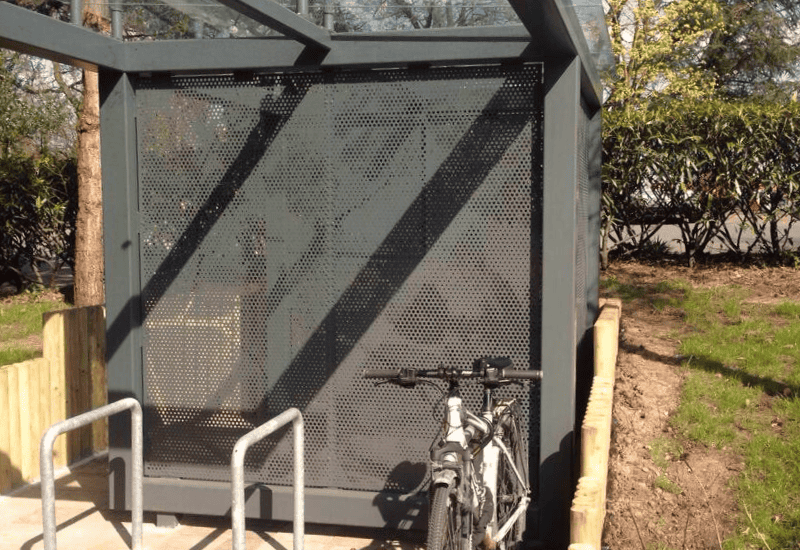

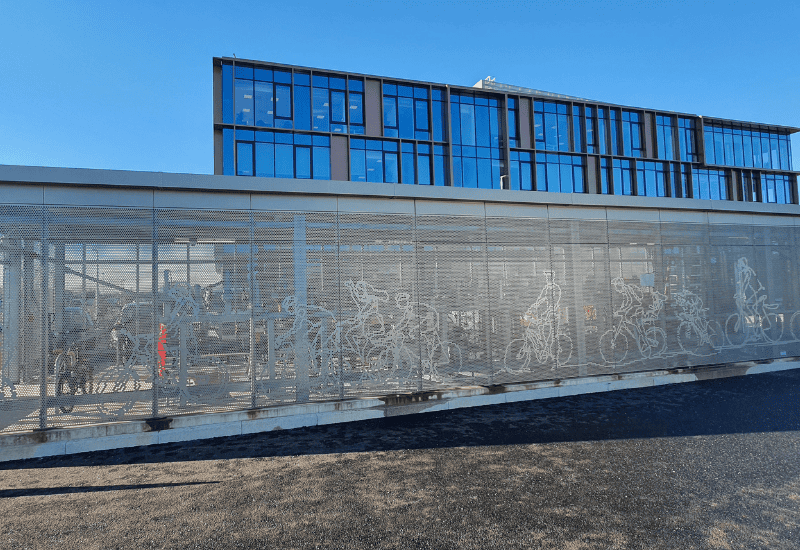

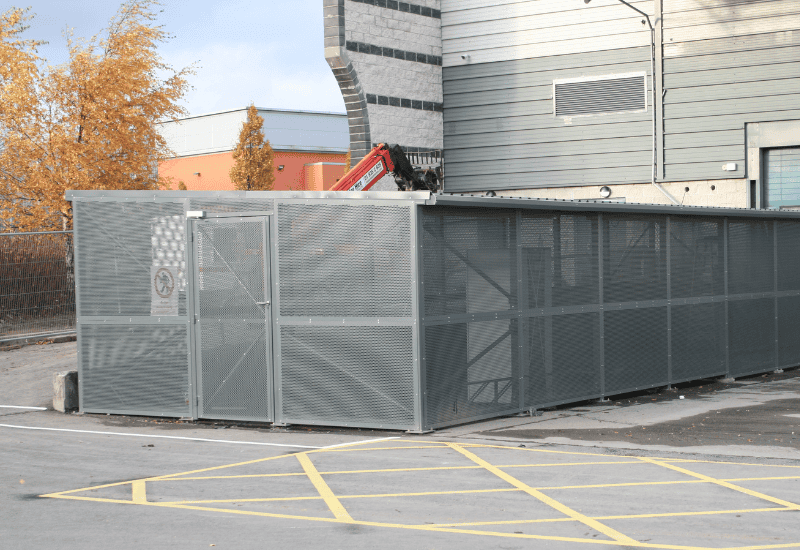

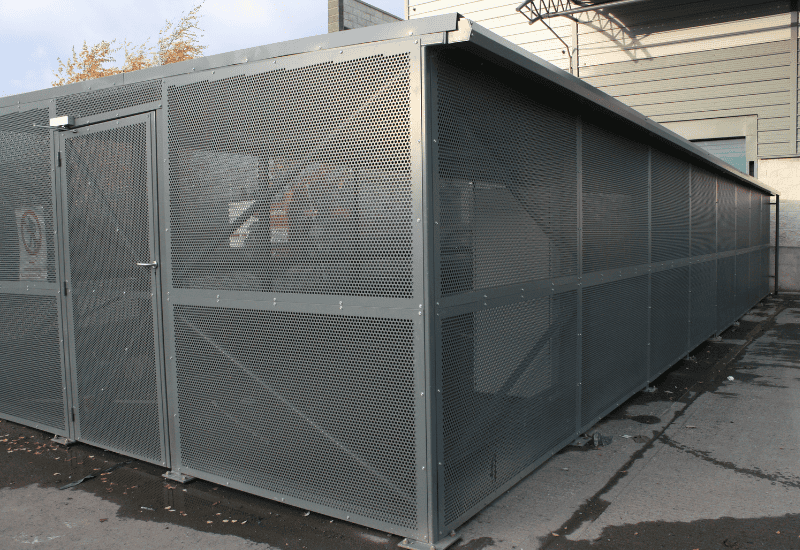

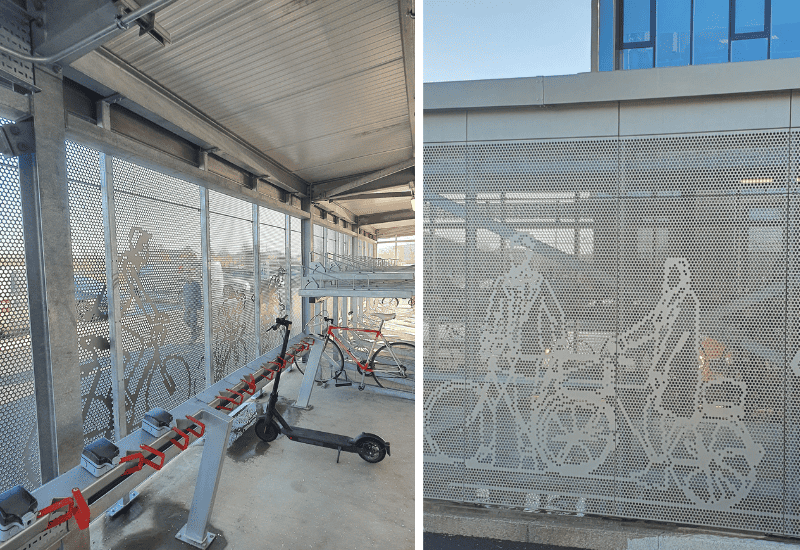

Bicycle Parking and Storage: Metal Enclosures in perforated metal or woven mesh are also used to provide secure parking and storage for bicycles in public areas, workplaces, residential buildings, and transportation hubs. They protect bikes from theft and vandalism.

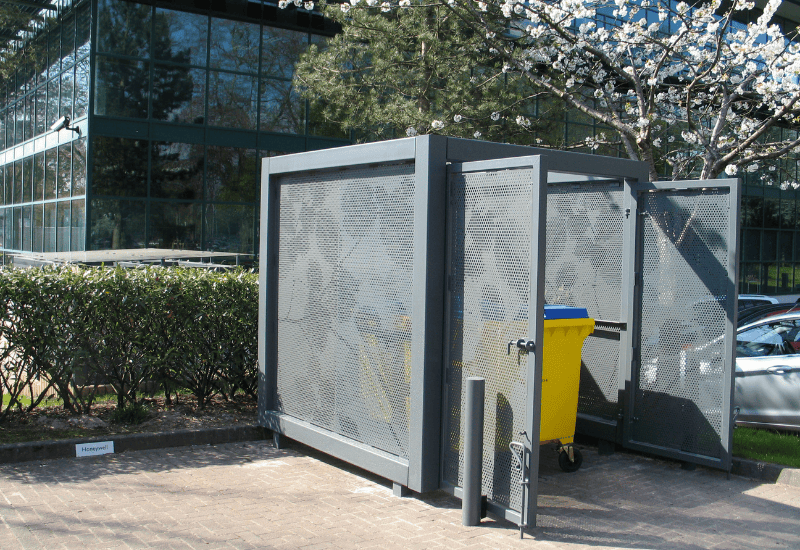

Bin Enclosures: Bin enclosures from perforated sheets, woven wire mesh and laser are used to store waste bins, recycling containers, and dumpsters in outdoor settings, such as residential complexes, commercial properties, and public spaces. These enclosures help contain odors, prevent littering, and improve the area’s overall appearance. They are typically made of durable materials like steel, aluminum, or galvanized steel mesh and can be customized with locking mechanisms and access doors for security.
