Fine Woven Mesh
Small Openings, Big Impact

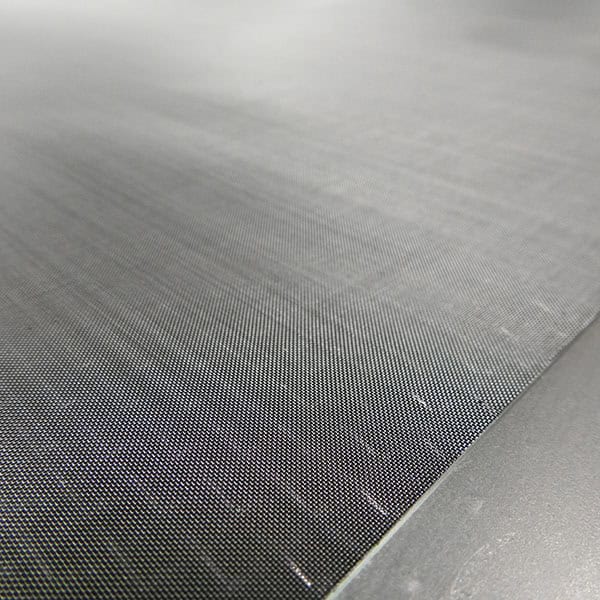

What Is Fine Metal Mesh?

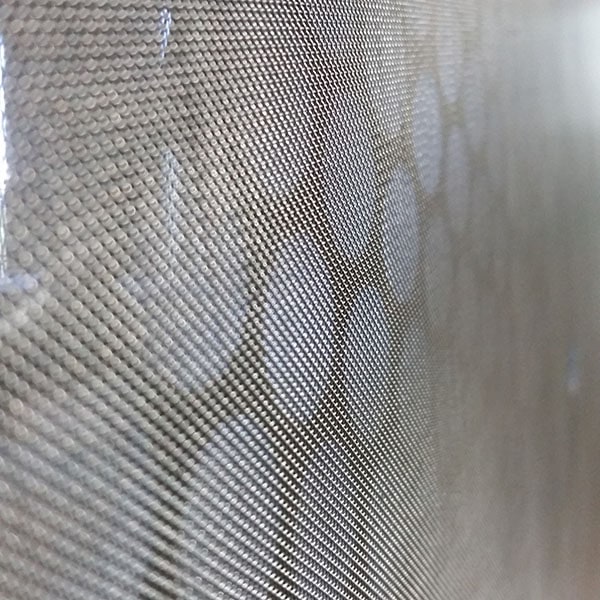

Fine woven wire mesh is a tightly interlocked metal fabric made from thin wire strands. The term “fine” refers to its small, precise apertures, which enable it to act as a mesh wire filter for applications requiring high accuracy. It provides strength, breathability, and exceptional control over particle filtration and airflow. Materials like stainless steel gauze mesh, aluminium, and galvanised steel are commonly used depending on the demands of the end application.
Download pdf

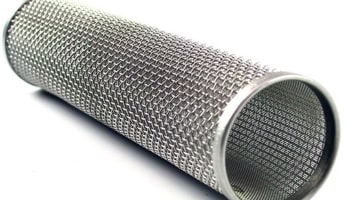

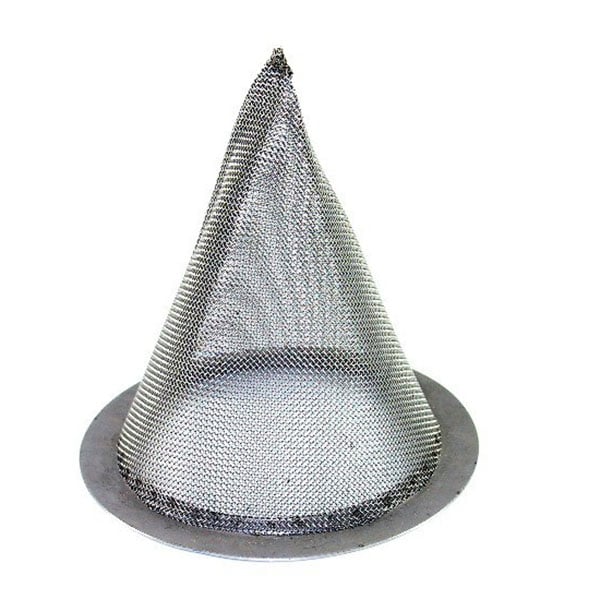

Top Applications for Metal Filtering Mesh
Fine metal mesh is used across industries that demand precision, durability, and flow efficiency. Common applications include:
- Filtering mesh for liquid and air filtration in food processing, pharmaceuticals, and chemical manufacturing
- Insect and vermin screens in agricultural and architectural settings
- Sieving and sorting in quarrying, recycling, and materials testing
Protective gauze and shielding in electronics and aerospace - Ventilation panels for data centres and HVAC systems
Its versatility lies in its ability to balance strength with permeability, making it suitable for both technical and aesthetic purposes.
Take a look at our range of screening media options.
How to Choose the Right Fine Woven Wire Mesh
Choose the Right Type of Metal Wire Mesh
- Sheet Size: Available as panels or in rolls. Mesh can be cut to specification depending on project requirements,speak to a Graepels representative to find the right fit.
- Material: Standard options Stainless Steel, Galvanised Steel and Aluminum other on request
- Metal Type & Grade: Select a grade based on the environment. Factors to consider include corrosion resistance, temperature exposure, chemical compatibility, and structural strength.
Select the Right Metal Mesh Proportions
- Mesh Aperture: Aperture size determines the size of particles that can pass through. Smaller openings suit fine filtration; larger ones are used for applications like vermin mesh (6.35 mm for mice, 9.5 mm for rats).
- Open Area (%): This is the percentage of mesh that is open space, allowing air or fluid to pass through. Fine woven mesh typically offers 20% to 80% open area.
- Wire Diameter: The thickness of the wire contributes to mesh strength and filtering precision. Choosing the right diameter helps balance rigidity with performance.
- Mesh Number: This refers to the number of openings per linear inch. A higher mesh number generally means finer mesh, with aperture size and wire diameter both affecting this figure.
The Benefits of Our Fine Metal Mesh
- Strength and Durability: Despite its fine construction, woven mesh can offer significant strength and durability. Metal meshes are known for their robustness and resistance to mechanical stresses, corrosion, and hot temperatures, making them suitable for demanding industrial applications.
- High Open Area: Fine woven mesh typically maintains a high open area, meaning it allows for efficient airflow or fluid flow while still providing effective filtration or separation. This is crucial in applications where maintaining flow rates is essential, such as in HVAC systems, fluid filtration, and food processing.
- Precise Filtration: Fine woven mesh can filter out small particles, thanks to its tightly woven structure. This makes it highly effective in applications where precise filtration is necessary, such as in pharmaceutical manufacturing, laboratory research, and water treatment.
- Versatility: Fine woven mesh can be manufactured using various materials, including metals like stainless steel, aluminium, and brass, as well as synthetic materials like nylon and polyester. This versatility allows it to be adapted to different environments and applications, from industrial filtration to architectural design.
For a list of common applications visit the application section of the website. For more information on the industry sectors served and the uses within each market visit the industry section of the website.
| Industrial | Design | Process |
| Construction | Architecture | Food Processing |
| Agricultural | Hospitality | Pharmaceuticals |
| Maritime & Fisheries | Interior Design | |
| Safety & Security | Landscape & Garden Design |
Choose Graepels for Fine Metal Mesh Solutions
Choose Graepels for fine metal mesh solutions, tailored to suit a wide range of applications — from precision filtration and screening to fly and vermin mesh. With decades of industry experience, we offer trusted advice, high-quality options, and a commitment to delivering the right mesh for your project.
